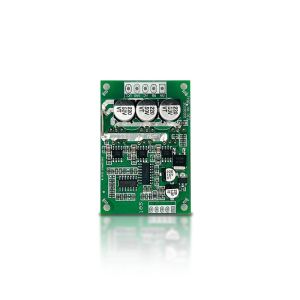

JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation

Place of Origin : Jiangsu, China

Brand Name : Bextremeshell

Model Number : JYQD-V6.3E2

MOQ : 1

Price : $7.90-9.90

Model No. : JYQD-V6.3E2

Power Input : 12-36VDC

Rated Power : 350W

Max Power : 500W

Max Current : 15A

Control Algorithms : Square wave

Dimensions : 63mm x 36.5mm x 17mm

Speed Control : PWM/0-5V

Speed Feedback : Yes

Working Temperature : -10℃ to 60℃

PWM Frequency : 1K-20KHZ

PWM Duty Cycle : 0-100%

PWM Amplitude : 5V

Control Port Distance : 2.54mm

Power Port Distance : 3.96mm

Contact Now

BLDC Motor Driver Major Parameters
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
Model No.:JYQD-V6.3E2
Power Input：12-36VDC
Rated power：350W
Suitability ：Sensorlesss motor
Max power：500W
Max curernt: 15A
--------------------------------------------------------------------
Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating
Control algorithms: Square wave
Dimensions：63mmx36.5mmx17mm
Speed Control：PWM/0-5V
Speed feedback signal output：Yes
Working temp：-10℃—60℃


BLDC Motor Driver Applications
JYQD-V6.3E2 BLDC motor driver board is a direct current brushless driver board. It is designed to control DC brushless motors and provide precise speed regulation range from 0 to 100%. The control algorithms of this product are based on square wave which promotes its stability and accuracy. This driver board is suitable for a wide range of applications, such as robot, electric bicycle, electric wheelchair, electric scooter and hub motor. The maximum current of this DC brushless driver board is 15A and it is the ideal choice for those who needs a reliable and efficient motor driver board.
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
Electric skateboard
Electric scooter
Electric wheelchair
Hoverboard
Drones
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
Electric unicycle
Electric Moped
Electric go kart
RC car
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
Industrial robot
Logistics conveyor belt
Automation equipment
CNC machines
Self-propelled lawn mowers

JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
Consumer electronics Home appliances Industrial equipment
BLDC Motor Driver Appearance
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
Application guidelines
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. JYQD-V6.3E2 is driver board without housing and heatsink, it can drive the motor below 100 watt without any heatsink,
but needs normal ventilation.
3. The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to
external potentiometer or switch for speed adjustment, commutation and enabling operation
BLDC Motor Driver Wiring
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing
operation
Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or
connect to GND is reverse direction.
VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1K-20KHZ; Duty cycle 0-100%，PWM amplitude：5V
Signal— Speed pulse signal output,5V pulse signal
GND—Used for Driver board internal control

2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND ----DC
VCC----DC +

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use
5. Control port distance: 2.54mm,Power port distance:3.96 mm
6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.
BLDC Motor Driver's size
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
Manufacturing Technique
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
Packing info



The BLDC motor driver well packed in an individual antistatic bag.


FAQ
JYQD-V6.3E2 BLDC Motor Driver 500W 15A with Speed Regulation
1:Whats the Lead time?
Sample:in 5 days
Mass order:in 2-3weeks

2:Whats the MOQ?
1 set for all series products

3:Whats the BLDC motor driver Warranty?
12 month from the date of delivery

4:How is the technical support?
We offer 1-1 service& technical support
